- Will a Diode Laser Engrave Anodized Aluminum? Yes. In the practical maker sense, a diode laser can remove the colored surface layer and reveal a contrasting mark. That result differs from deep engraving bare aluminum. Start with a small test on a known blank, then check focus and software units.
- This is usually a surface mark, not deep engraving or cutting into the aluminum.
- Bare, painted, powder-coated, and anodized aluminum can react in very different ways.
- Run a small test grid. Published speed and power settings are starting points only.
- A diode laser works well for cards, labels, and panels. Choose fiber or IR for deeper direct-metal work.
Ever run a small test on an anodized aluminum card and get a pale scratch instead of a clean mark? It is frustrating, especially when changing the speed and power does not seem to help. In many cases, the problem is the surface you are testing, not the laser itself.
So, will a diode laser engrave anodized aluminum? Yes, but the result is usually a surface mark. The laser removes the colored anodized layer and exposes the lighter surface underneath. It is not the same as engraving deeply into the aluminum.
That distinction matters when you choose settings. Do not start by copying a setting from someone else’s machine. First identify the material, then run a small test grid. This guide walks through both steps and explains when a diode laser is suitable, and when a fiber or IR laser makes more sense.
Table of Contents
- Will a Diode Laser Engrave Anodized Aluminum?
- How Anodized Aluminum Reacts to a Blue Diode Laser
- Anodized Aluminum vs. Bare, Painted, and Powder-Coated Aluminum
- What Beginners Need to Engrave Anodized Aluminum Safely
- A Two-Minute Quick Start for Anodized Aluminum
- How to Find Power and Speed Settings in LightBurn
- Step-by-Step: Engrave a Logo, Text, or QR Code
- Why the Mark Looks Gray, Silver, Weak, or Uneven
- When a Diode Laser Is the Wrong Tool for Aluminum
- FAQ: Diode Laser Engraving on Anodized Aluminum
- Final Recommendation
- Sources and Further Viewing
Will a Diode Laser Engrave Anodized Aluminum?
Yes. A properly focused blue diode laser can create a clear, high-contrast visible mark on genuine anodized aluminum, especially when the surface is dark.
An anodized part has an oxide layer on its surface. That layer can be dyed. When the laser heats it, the colored layer is removed in the areas touched by the beam. The lighter surface underneath becomes visible.
Think of it like removing ink from a printed label. You are changing the top layer first. The metal underneath usually remains nearly flat.
The distinction matters because “engraving” can describe two different outcomes:
| Surface or process | Typical diode result | What is happening | Beginner expectation |
|---|---|---|---|
| Genuine anodized aluminum | Clear light mark | Colored oxide layer is removed | Good for labels and cards |
| Bare aluminum | Weak or inconsistent mark | Reflective metal absorbs little blue light | Do not expect deep engraving |
| Painted aluminum | Burned or removed coating | Paint reacts differently by formula | Test every material |
| Fiber or IR marking | Deeper, more direct mark | Different wavelength and energy delivery | Better for metal-focused work |
The Clough42 anodized-aluminum test used a 10W, 455 nm xTool D1. At 100% power and 105 mm/s, it produced a clear mark. A separate 5W desktop-laser project also produced a Wi-Fi QR card at full power and 300 mm/s.
Those results prove the process is possible. They do not prove that either setting will work on your machine.
How Anodized Aluminum Reacts to a Blue Diode Laser
The short version is simple: the diode laser interacts with the anodized surface more easily than it interacts with shiny bare aluminum.
Blue diode lasers commonly use a wavelength around 450–455 nm. Bare aluminum reflects much of that visible light and spreads heat quickly. A dyed anodized layer gives the beam a more absorbent surface to work on.
That is why a low-power diode can mark a coated aluminum card while a higher-power diode struggles with a raw aluminum plate. More watts do not automatically fix the wavelength and surface problem.
The resulting mark is usually shallow. You may feel little or no depth with a fingernail. For a logo, serial label, control-panel symbol, or QR card, that can be completely adequate.
The Thunder Laser aluminum guide makes the same practical distinction: diode lasers are most reliable on anodized or coated surfaces. Fiber systems are better suited to deeper direct-metal work.
Anodized Aluminum vs. Bare, Painted, and Powder-Coated Aluminum
Identify the finish before you choose settings. A diode laser reacts to the actual surface in front of it. Product descriptions can be wrong.
Genuine anodized aluminum
Genuine anodized aluminum often produces a light, high-contrast mark when the colored surface layer is removed. Dark cards are popular because the contrast is easy to see.
In one test, a purple anodized aluminum handle produced a bright white mark with no visible residue. That is a useful visual baseline. Results still vary by color and supplier.
Bare aluminum
Bare aluminum is a much harder target for a blue diode laser. You may see discoloration or a weak mark. Sometimes you will see nothing useful. The clean result from anodized stock should not be expected.
Some makers use marking compounds on raw aluminum. That becomes a separate coating-and-bonding process. It also adds preparation time. Cleanup work becomes another variable.
Painted aluminum
Paint may burn, flake, or lift unevenly. It can look similar to anodizing before the laser runs, then behave completely differently under heat.
One business-card comparison found that painted cards tended to produce an “all or nothing” result. Anodized cards handled shading and detail better. The test covered one small set of products, so use it as a warning about material choice, not as a universal standard.
Powder-coated aluminum
Powder coating is also not automatically equivalent to anodizing. Test it separately. A coating can burn away without creating a durable fused mark, depending on its chemistry and the laser process.
If a card labeled “anodized” leaves a shiny silver mark with residue, pause before blaming the laser. The surface may be painted or otherwise coated. The original 10W test showed this contrast between a questionable card and a genuine-looking anodized handle. The video did not perform a laboratory coating analysis.
What Beginners Need to Engrave Anodized Aluminum Safely
You need five basics: a laser with known optical output and a flat aluminum blank. You also need accurate focus. Ventilation and wavelength-appropriate eye protection are essential too.
Laser and software
LightBurn is a common choice for diode machines. Before running a job, confirm your machine profile and movement units. A LightBurn forum discussion showed how a mistaken mm/s versus mm/min setting can completely change the result. If you’re brand new to it, the full LightBurn 101 guide covers the basics first.
You also need a way to secure the blank. A loose card can move, reflect light unpredictably, or ruin alignment.
Aluminum blanks and cleaning supplies
Inexpensive blanks from a supplier that clearly describes the finish are the safest starting point. Keep one spare from the same batch for testing. Clean the surface according to the supplier’s instructions, then use a soft cloth and a suitable cleaner for the final finish.
Do not assume every black aluminum card is anodized. Surface color is not proof of surface chemistry.
Eye protection and ventilation

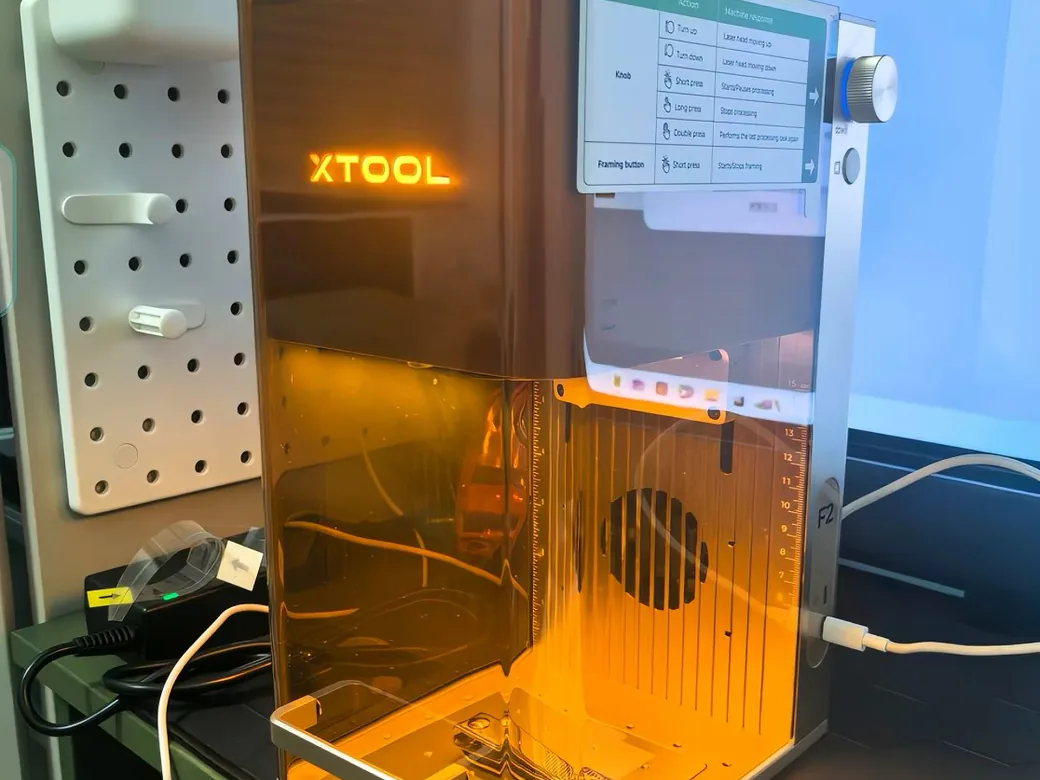

Laser safety comes first. Use an enclosure or rated laser protection cover when appropriate. If you use open equipment, wear protection rated for your laser’s wavelength and power. Do not trust an unmarked pair of glasses simply because it came in the box.
Metal coatings can create smoke or airborne residue. Use effective ventilation and keep your face out of the exhaust path. Read the material’s safety information before processing an unknown coating.
For a wider beginner checklist, see our guide to laser safety tools for beginners.
A Two-Minute Quick Start for Anodized Aluminum
The safest first project is a small test mark on a spare area. Do not start with a customer’s finished card.
- Confirm that the blank is anodized or coated aluminum.
- Place it flat and secure it so it cannot move.
- Clean the surface and set the correct focus.
- Create a small square, line, or short word in LightBurn.
- Run several low-area power and speed combinations.
- Inspect contrast first. Then check residue, edge quality, and wipe resistance.
If the mark is clean and readable, move to a larger design. If it is weak, silver, or dirty, test the material before increasing power blindly.
Material testing is not busywork. One 5W project found little visible difference between 100 and 300 mm/s on its cards. Another 10W test saw wavy small text at 105 mm/s and cleaner text after slowing to 25 mm/s.
Your result depends on the diode module and lens. Focus and motion matter. Surface color and coating thickness matter too. Design and software units add more variables. That is too many variables for one universal preset.
How to Find Power and Speed Settings in LightBurn
There is no universal anodized-aluminum setting. Test power and speed first. Then refine focus. Adjust line interval and pass count on your exact machine and blank.

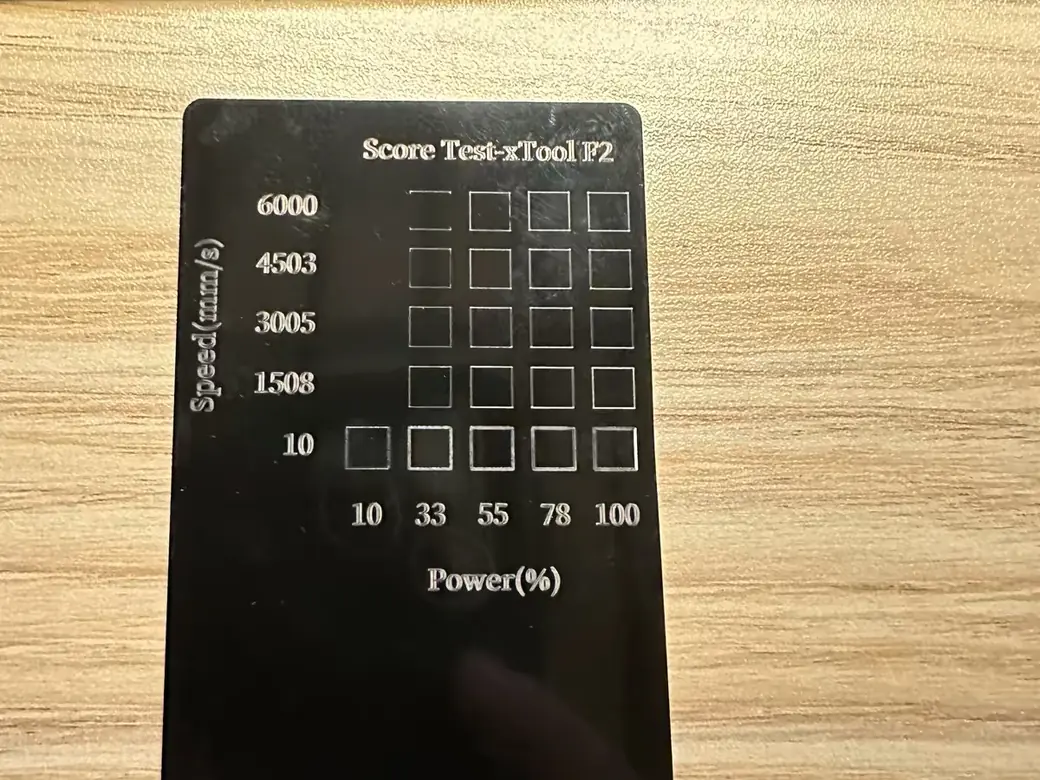

Build a small power-and-speed test grid
Use a small grid with readable labels. Change one variable at a time when possible. Record the result beside the blank or in a notebook.
Look for the best combination of contrast and edge quality. The darkest mark is not always the cleanest mark. A QR code needs sharp edges more than artistic shading.
Confirm mm/min versus mm/s
Check the units shown in both LightBurn and your machine profile. A numeric setting that looks reasonable can become wildly different when the unit changes.
This is a common source of bad comparisons. When you copy a setting from a video, record the unit and power mode. Also record the scan density and pass count. Note the machine model too. The LightBurn forum discussion shows why the unit check matters.
Use these examples correctly
These documented settings are useful examples. They are not guaranteed recipes:
| Example | Machine or project | Reported starting point | Use it for |
|---|---|---|---|
| A | 10W xTool D1 | 100% / 105 mm/s | Solid-mark baseline |
| B | 5W desktop laser | 100% / 300 mm/s | Card-project baseline |
| C | 10W Ortur photo job | 2,000 mm/min / 9.5% max | Photo workflow example |
| D | Aluminum card project | 125 IPM / 85% | Card workflow example |
The numbers look contradictory because the machines and materials differ. The designs and goals differ too. That is the point. Use them to design your test. Do not use them as a reason to skip testing.
For a broader explanation of how machine settings should be interpreted, see our beginner guide to repeatable settings. The examples are from 3D printing, but the habit of recording units and conditions transfers well.
Step-by-Step: Engrave a Logo, Text, or QR Code
Simple vector text or a high-contrast QR code makes the best first project. You can inspect alignment and contrast without wondering whether a complicated image caused the failure.
Prepare the artwork
Use bold shapes and clear spacing. For a QR code, keep the quiet zone around the code intact. Avoid tiny text until you know how your laser handles small details.
For a photo, prepare the image before opening the laser. A 10W Ortur project used grayscale conversion plus contrast adjustment. It added sharpening and a negative image in LightBurn, then increased the image from 72 to 318 DPI without resampling.
Those photo settings show one workflow. They should not be treated as a universal anodized-aluminum preset.
Position and focus the blank
Use a jig, grid, or fixed corner so the blank returns to the same position. Check focus on the actual aluminum surface. A small focus error can soften text and reduce contrast.
One desktop project used alignment marks and a simple jig to position multiple cards. It reported fitting up to nine cards in one batch. That approach is useful after your single-card test is repeatable.
Run the test mark
Test a corner or spare blank first. Check whether the mark has the color and contrast you expect. Wipe the surface only after the laser has cooled and your cleaning method is safe for the finish.
Engrave and clean the final design
Run the final design after the test passes. Remove loose residue gently. Some makers use acetone for certain card finishes, but cleaning compatibility varies, so follow the blank supplier’s guidance and test in an inconspicuous area.
Scale up carefully
Keep the same batch together when possible. A new color, supplier, thickness, or finish deserves a new test. “Same product name” does not always mean same surface response.
Why the Mark Looks Gray, Silver, Weak, or Uneven
Unexpected color usually points to the surface, focus, settings, or cleanup. It does not automatically mean your diode laser has failed.
| Symptom | Likely cause | First test |
|---|---|---|
| Silver mark with residue | Painted or unusual coating | Test a known anodized blank |
| Gray or weak mark | Low contrast, poor focus, or unsuitable finish | Refocus and run a small grid |
| Wavy small text | Speed or motion behavior | Test slower speeds and disable outline pass |
| Different cards look different | Batch or coating variation | Test each new batch |
| QR code will not scan | Weak contrast, small modules, or poor quiet zone | Use a larger code with stronger contrast |
Do not solve every weak result by adding power. Excess energy can create residue and soften edges. It can also damage the finish. Change one variable. Test a small area. Record what happened.
When a Diode Laser Is the Wrong Tool for Aluminum
Use a diode laser for coated-surface marking and small maker projects. Evaluate fiber or IR when you need a more direct and controlled metal-marking process.
A blue diode and an IR source are different tools. LaserPecker’s aluminum guide separates diode, CO2 plus fiber use cases. Fiber systems are worth evaluating when you need more control over bare aluminum or deeper marks.
Marking sprays can help with some bare-metal workflows, but they are not magic. The diode tests reviewed here found that one spray worked on mild steel but did not bond to aluminum. Another maker reported success with a different compound and setup. Treat the spray as a new experiment. Validate the substrate and wavelength. Check the settings too.
A diode laser does not become an aluminum cutting machine simply because its rated power is higher. Surface marking and coating removal are separate from deep engraving. Cutting is a different job again.
If material choice matters more than marketing claims, read our guide to the best laser engraver by material.
FAQ: Diode Laser Engraving on Anodized Aluminum
Can you laser engrave on anodized aluminum?
Yes. Genuine anodized aluminum can produce a clear diode-laser mark when its colored oxide layer is removed. The result is generally shallow, so do not confuse it with deep metal engraving.
Which type of laser is best for engraving on anodized aluminum?
A blue diode laser is practical for small coated items, cards, labels, and hobby projects. Fiber or IR is the better choice for deeper direct-metal work.
Can a 10W laser engrave anodized aluminum?
Yes. A 10W diode laser has produced clear marks in documented tests. Your material color and coating still matter. Focus and speed affect the result. Power control and design matter too.
How many watts does a laser need to engrave anodized aluminum?
There is no single wattage requirement. A 5W diode can work on suitable blanks, while higher-power machines may offer more flexibility. Wattage alone cannot replace a material test.
Can a blue diode mark bare aluminum?
Usually not reliably with a blue diode alone. Bare aluminum reflects visible diode light and distributes heat quickly. You may need a validated marking compound, a different wavelength, or a fiber system.
Can a diode laser cut aluminum?
No. A diode laser may mark a coating or surface, but that is not the same as cutting aluminum. Metal cutting requires a different process and equipment class.
Final Recommendation
If you already own a blue diode laser, test a known anodized blank before shopping for another machine. Start with a small grid. Confirm your units and focus carefully. Judge the mark after safe cleanup.
The most important expectation is simple: you are usually removing a surface layer. Deep metal engraving requires a different tool. Once you understand that boundary, anodized cards and labels become realistic beginner projects. QR codes and nameplates work too. Small panels are realistic as well.
If your real goal is deep engraving, bare-metal production, or repeatable industrial marking, move to fiber or IR research. The right tool depends on the surface in front of the laser.
